‹ Home › Inventory › 2025 Harley-Davidson Street Bob™ Centerline Yellow Laced Wheels *MY24 RUNOUT WAS $28530 NOW $25990!*

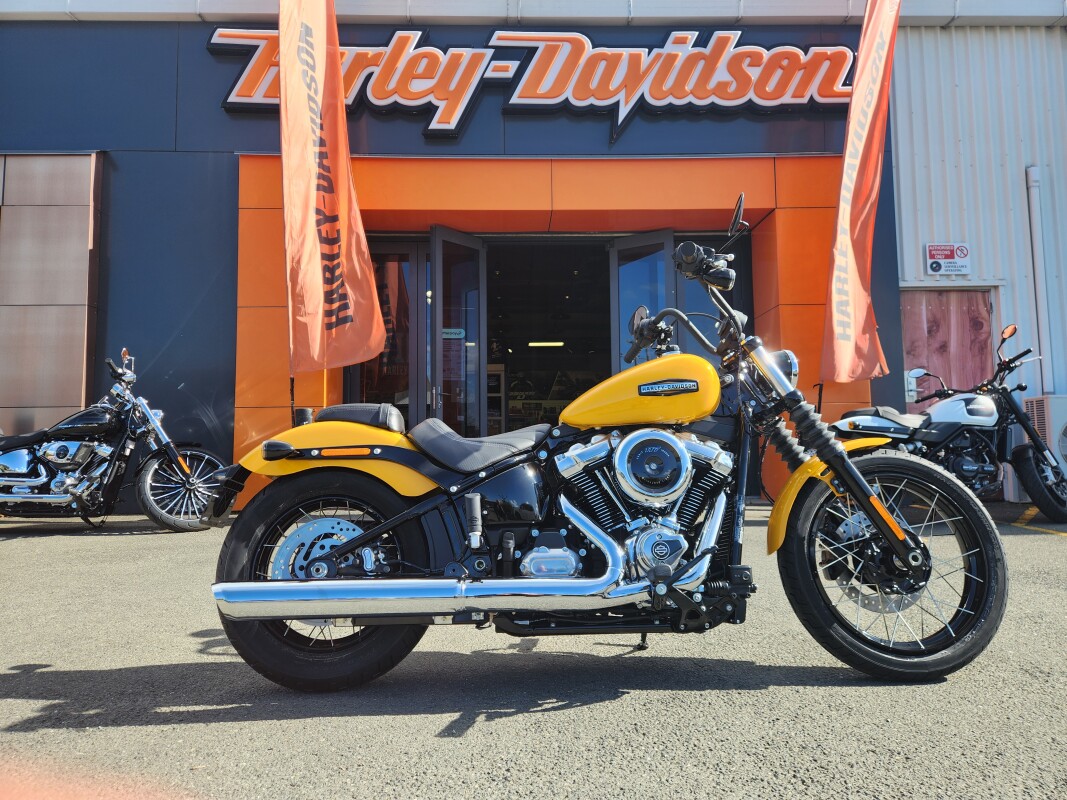

2025 Harley-Davidson® Street Bob® 117, Centerlie Yellow with Chrome Trim and Spoke Wheels "POWERED TO PERFORM"

The 2025 Harley-Davidson Street Bob® 117 in Centerline Yellow is a masterclass in minimalist design and modern performance. Its sleek 13.2-litre fuel tank, adorned with the classic "stretched diamond" tank medallion inspired by a 1966 Willie G. design, sets the tone for its stripped-back bobber aesthetic. The chrome accents and spoke wheels enhance its vintage appeal, while the updated paint and graphics add a contemporary touch. The Milwaukee-Eight® 117 Classic engine, delivering 98 horsepower and 120 lb-ft of torque, ensures a thrilling ride with its wide, flat torque curve. Coupled with the improved SHOWA® dual-bending valve front suspension, the Street Bob® offers a comfortable and composed ride, whether on the highway or navigating corners. The new 102 mm multifunction display and integrated hand controls provide easy access to ride modes, audio management, and more, keeping you connected and in control.

The 2025 Street Bob® 117 is more than just a motorcycle; it's a statement of style and performance. Its combination of classic bobber aesthetics and modern engineering makes it a standout choice for riders seeking both form and function. Whether you're a seasoned enthusiast or new to the Harley-Davidson family, the Street Bob® 117 offers an authentic riding experience that's hard to match.

Get in contact today or come in and talk to one of our sales team, we're here to help you find your perfect ride.

Specifications

Dimensions

add remove
- Length:

  2320 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  125 mm
- Rake:

  30
- Trail:

  157 mm
- Wheelbase:

  1630 mm
- Tyres, front specifications:

  100/90B19,57H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  13.2 l
- Oil capacity:

  2.6 l
- Weight, as shipped:

  282 kg
- Weight, in running order:

  293.02 kg
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  163 Nm
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
